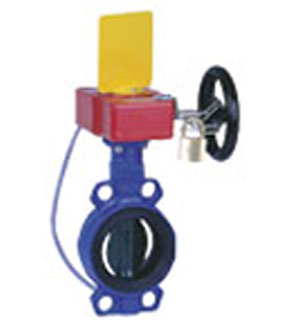

Danfoss Bombyx Wafer Type Butterfly Valve

Size Range

32mm - 300mm (1.1/4” - 12”)

Flange Accommodation

BS4504 PN6/10/16/25/40
ANSI B 16.5, Class 150
BS 10 Table D and E
DIN 2501 PN 6/10/16/25/40
MSS SP44 Class 150
JIS B 2211-5K/10K/16K

Temperature Range

-15°C to +110°C (depending on material & pressure)

Pressure Rating

Maximum 16 Bar (20 Bar available on request)

Body Material

Cast Iron EN GJL 250 (Epoxy Coated)
Ductile Iron EN GJS 400-15 (Epoxy Coated)

Disc Material

Ductile Iron EN GJS 400-15 (Polyamide Coated)
Stainless Steel 1.4408 (316)
Stainless Steel 1.4404 (316L)
Aluminium Bronze

Stem Material

Stainless Steel 1.4028 (420)
Stainless Steel 1.4404 (316L)
Stainless Steel 1.4542 (630)

Seat Material

EPDM

Aprovals Available

CNPP Version (National centre for Prevention & Protection)
FM Version (Factoty Mutual)

Download this page as PDF

Save this page to your PC - Download as PDF Data Sheet

Further Information

For further information, please email sales@eurovalve.co.uk or call 01909 489 120. Why not send a link to a colleague using the links below.

Eurovalve on Facebook Eurovalve on Twitter Eurovalve on YouTube
Danfoss Bombyx Wafer Type Butterfly Valve

The Bombyx wafer butterfly valve is approved for use in Sprinkler Systems.

Danfoss Bombyx Wafer Type Butterfly Valve
