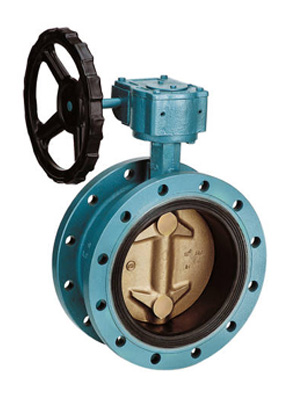

Ebro FO12-A Double Flanged Type Butterfly Valve

Size Range

50mm - 1200mm (2” - 48”)

Flange Accommodation

BS4504 PN6/10/16
ANSI B 16.5, Class 150
BS 10 Table D and E
DIN 2501 PN 6/10/16
MSS SP44 Class 150
AWWA C 207
JIS B 2211-5K/10K

Temperature Range

-20°C to +160°C (depending on material & pressure)

Pressure Rating

Maximum 16 Bar

Body Material

Ductile Iron GGG-40 (Epoxy Coated)

Disc Material

Ductile Iron GGG-40 (Halar Coated)
Stainless Steel Gr. 304
Stainless Steel Gr. CF8M
Stainless Steel Gr. 316L
Stainless Steel Gr. 316 Ti
Duplex Stainless Steel 1.4469
Hastelloy 2.4883
Aluminium Bronze

Stem Material

Stainless Steel Gr. 430F
Stainless Steel Gr. 316
Hastelloy 2.4883

Seat Material

NBR
EPDM
CSM (Chlorsulphonated Polyethylene)
FPM (Viton)
Silicone
Polyurethane Elastomer

Download this page as PDF

Save this page to your PC - Download as PDF Data Sheet

Further Information

For further information, please email sales@eurovalve.co.uk or call 01909 489 120. Why not send a link to a colleague using the links below.

Eurovalve on Facebook Eurovalve on Twitter Eurovalve on YouTube
Ebro FO12-A Double Flanged Type Butterfly Valve

The F012-A double flanged butterfly valve enables 'End of Line' installation.

Ebro FO12-A Double Flanged Type Butterfly Valve

Installation InstructionsInstallation Instructions
Quality FeaturesQuality Features
Technical Data SheetTechnical Data Sheet
