products > valves > plug valves > Xomox Lined Plug Valve

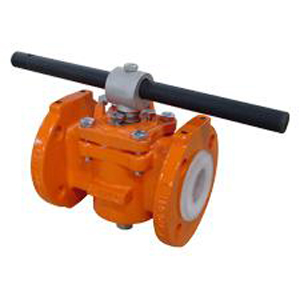

Xomox Lined Plug Valve

Size Range

15mm - 300mm (1/2” - 12”)

Flange Accomodation

ANSI B 16.5, Class 150/300

Temperature Range

-18°C to +204°C (depending on material & pressure)

Pressure Rating

Maximum : 49 Bar (depending on Flange Drilling & size)

Body Styles

2-Way
3-Way, L & T Port

Body Material

Ductile Iron (Externally Epoxy Coated)
Carbon Steel ASTM A216 WCB (Externally Epoxy Coated)
Stainless Steel ASTM A351 CF8M
Other materials are available on request

Body Liner Material

PFA
PFA (Unpigmented)

Plug Material

Ductile Iron
Carbon Steel
316 Stainless Steel
Hastelloy B & C
Alloy 20
Titanium

Plug Liner/Coating Material

PFA
PFA (Unpigmented)
Unlined Plug

Download this page as PDF

Save this page to your PC - Download as PDF Data Sheet

Further Information

For further information, please email sales@eurovalve.co.uk or call 01909 489 120. Why not send a link to a colleague using the links below.

Eurovalve on Facebook Eurovalve on Twitter Eurovalve on YouTube
Xomox Lined Plug Valve

Xomox's 2-way and 3-way fully lined plug valves feature an encapsulated plug rotating in a fully lined body. Superior lining handles the most corrosive fluids. Fluctuations in processing temperatures or chemical concentration also have little or no effect on our lining.
