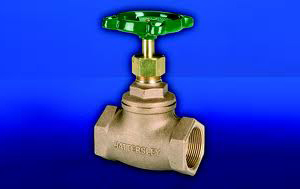

Hattersley Fig 13 Threaded PN32 Bronze Globe Valve

Send EnquiryData Sheet

Size Range

8mm – 50mm (¼” – 2”)

End Connections

BSPT Female – Standard

NPT Female - Option

Temperature Range

-10°C to +198°C

Pressure Rating

32 Bar @ 100°C

14 Bar @ 198°C

Body & Bonnet Material

Cast Bronze 1982 CC419K

Disc Material

PTFE

Stem Material

Brass BS EN 12165 CW617N

Seat Material

Cast Bronze 1982 CC419K

Specification

Rising Stem

Screwed Bonnet

Replaceable PTFE Disc

Hattersley 13 Threaded PN32 Bronze Renewable Seat Globe Valve
