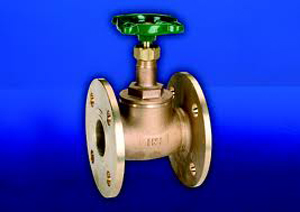

Hattersley Fig 17 PN16 Flanged Bronze Globe Valve

Send EnquiryData Sheet

Size Range

15mm – 50mm (½” – 2”)

End Connections

Flanged BS EN 1092-3 PN16 – Standard

Flanged BS10 Table E & F – Option

Flanged ANSI Class 125 & 150 - Option

Temperature Range

-10°C to +170°C

Pressure Rating

16 Bar @ 100°C

7 Bar @ 170°C

Body & Bonnet Material

Bonze 1982 CC491K

Disc Material

Glass Filled PTFE

Stem Material

Brass 12164

Seat Material

Bonze 1982 CC491K

Specification

Rising Stem

Screwed Bonnet

Renewable Glass Filled PTFE Disc

Conical Disc Seat
