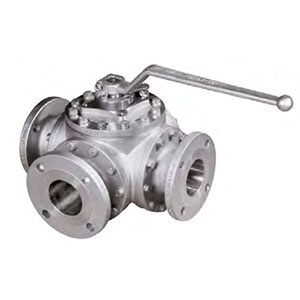

Pekos 3&4 Way DIN/ANSI Flanged Full Bore Ball Valve

Send EnquiryDIN IOM InstructionsANSI IOM Instructions

Size Range

25mm – 200mm (1” – 8”)

End Connections

BS EN 1092-01 PN16

ANSI B16.5 Class 150

Temperature Range

-10°C to +240°C (Seat Specific)

Pressure Rating

16 Bar (DIN)

150 lbs (ANSI #150)

Body Material

Stainless Steel ASTM A351 CF8M (316) / 1.4408

Carbon Steel A216 WCC / 1.0619

Ball Material

Stainless Steel ASTM A351 CF8M (316) / 1.4408

Stem Material

Stainless Steel ASTM A351 (316) / 1.4401

Seat Material

PTFE

15% Glass RPTFE

50% Carbon Graphite RPTFE

50% Stainless Steel RPTFE

Specifications

Full Bore

Anti-Blow-Out Stem

TA Luft Approved

ATEX Certified

PED Certified

L Port / T Port & Double L Port Options

90° and 180° Operation Available
